Hydraulic Wheel Motor with Shaft Seal and Low Start Up Pressure Ideal for Parallel or Series Configuration in Heavy Machinery

Descripción de producto

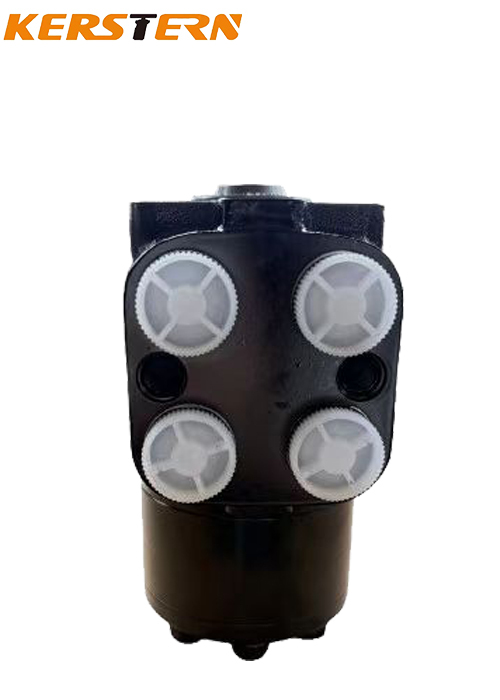

KM6B Brake motor

KM6B motor is KM6 brake motor with multi-disc brake that is released by a hydraulic pressure ,and has good brake performance ,the motor has same work performance as BM6 when the brake is released.

Note
1. Don’t work over the max pressure

2. The drain port must be connected to the return circuit

3. Don’t brake when the motor is dynamic status
4. If the system has pilot pump,use pilot oil to open the brake, otherwise , the working pressure don’t exceed 150 bar

5. The oil temperature don’t exceed 80℃

6. Oil recommended: Anti-wear hydraulic oils , viscosity at least 13cSt in working

Main Specification


Applications
These motors can be used in industrial machines (e.g. conveyors), mining machinery (e.g. drills, winches), working machines (e.g. bulldozers, crushers) and in shipbuilding industry (e.g. control systems, propellers) etc.

Advantages
1. Low start-up pressure;
2. Shaft seal can bear high back pressure;
3. The motor can be used in parallel or series configuration;
4. Distribution system can meet the requirements of low noise units;
5. Compact volume and easy installation;
6. High torque.
